Reliability & Durable

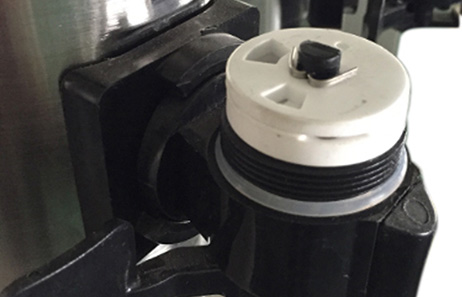

Iron rotating table and floor stander; POM plastic canisters or 304 stainless steel canisters for option; Ceramic valve, accurate and abrasion resistant; Durable and corrosion-resistant 304 stainless steel pump cylindersr;Easy Maintain

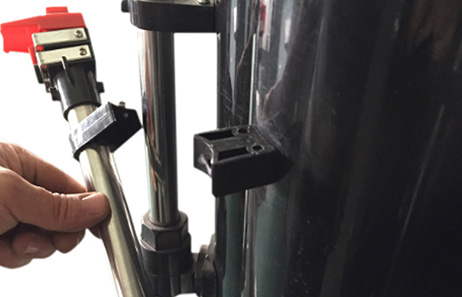

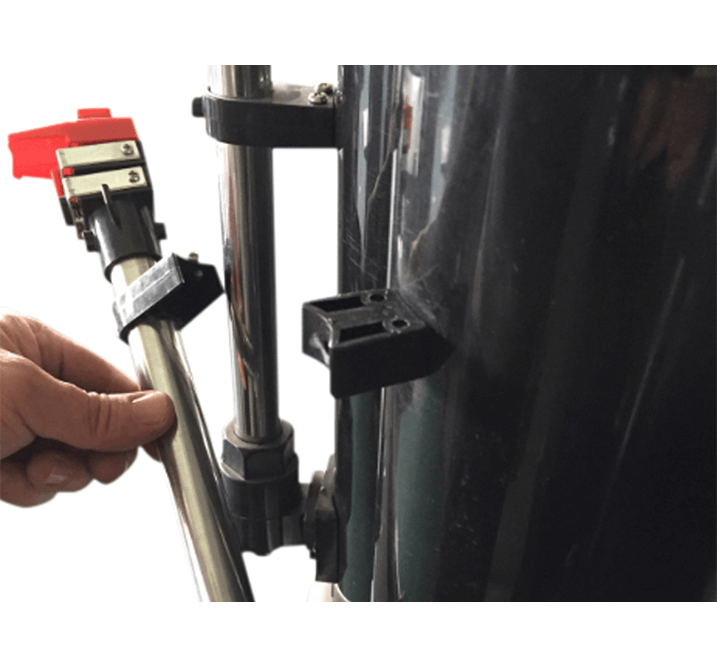

Removable nozzles, easy to clean Detachable pump, convenient to clean and maintainUser-Friendly Operation

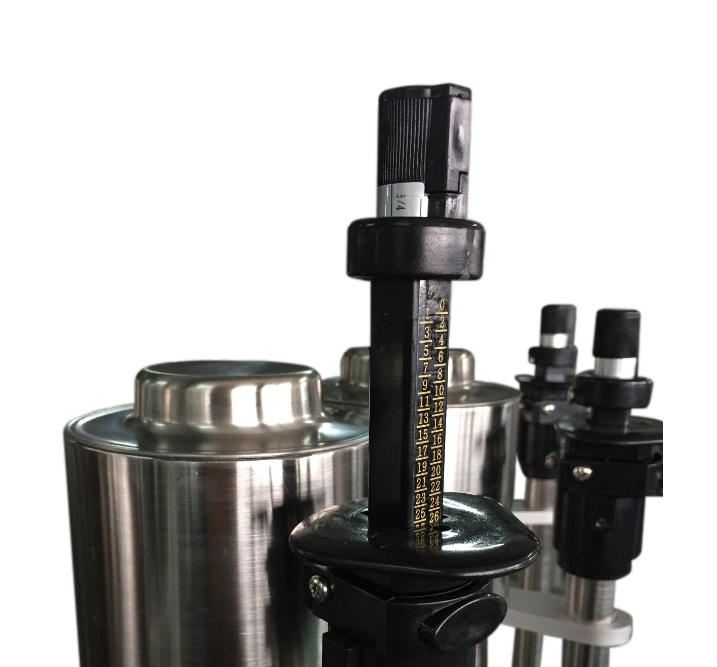

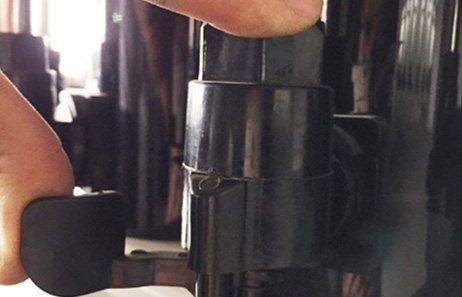

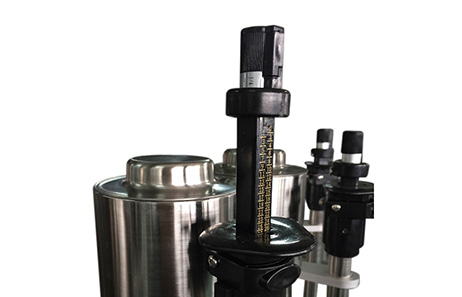

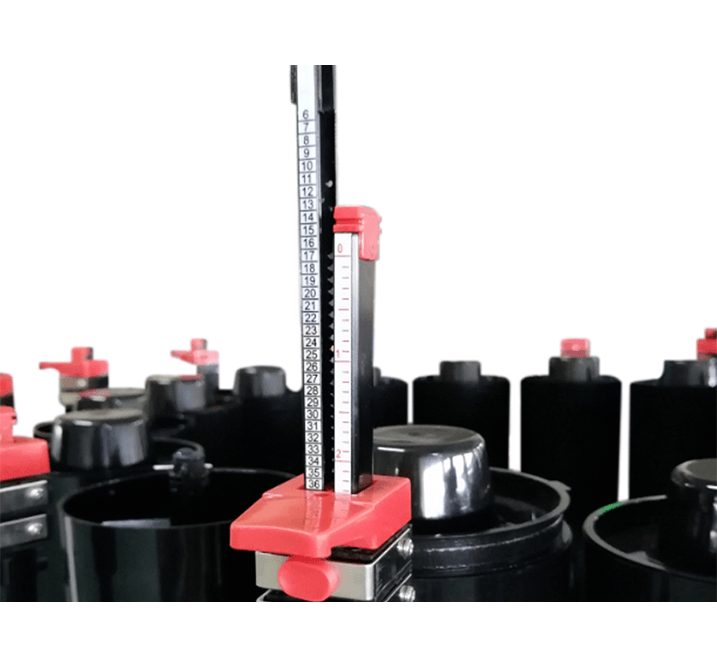

Automatic timer-controlled stirring colorants; Smart Gauge for fractional incremental dispensing, the user only needs to set the gauge one time for repeat multiple can dispensing; Retractable sealing valve handles with torsion spring , stop drips and avoid the drying of colorants;|
BASE DISPENSER FEATURES |
|
|
Colorant Base Compatibility |
Water-based ,Universal |
|
Canister Configurations |
Up to 16 |
|
Canister Quantity |
12 canisters/16 canisters. |
|
Gauge type |
Double gauge (adhesive sticker mark) /Single gauge (Laser mark) |
|
Model type |

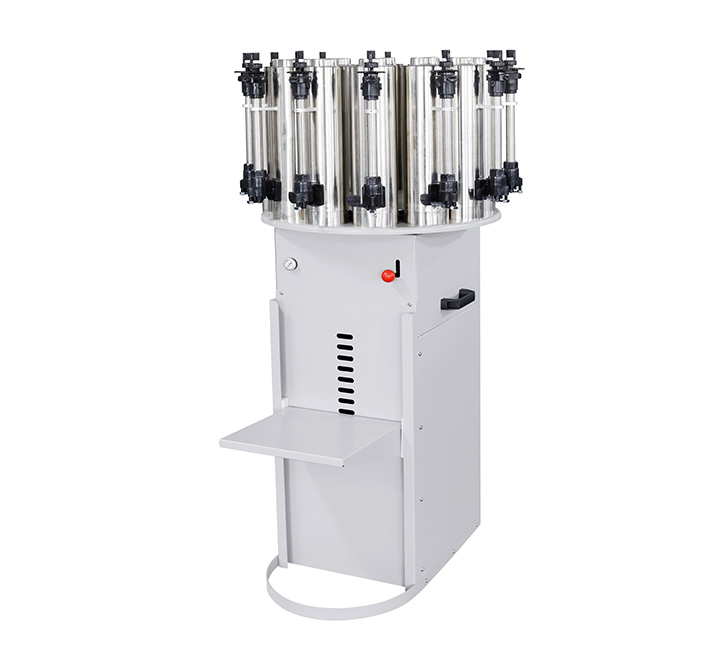

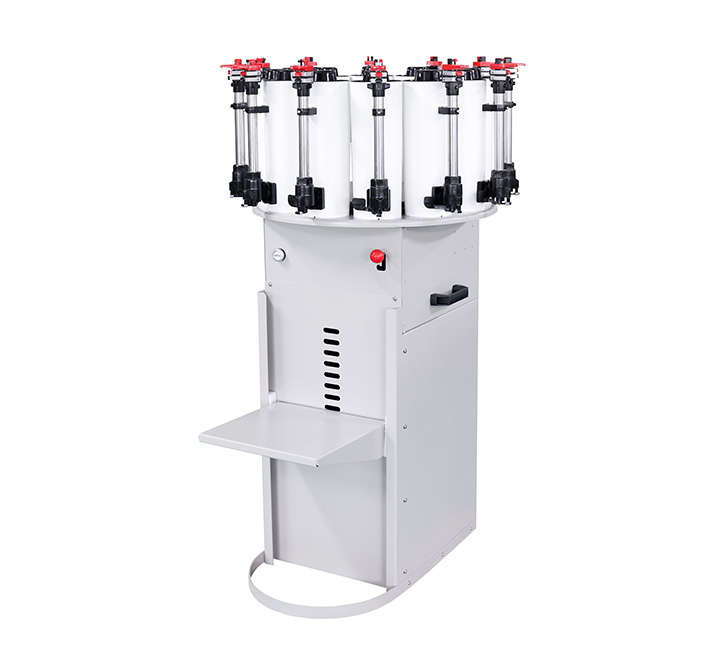

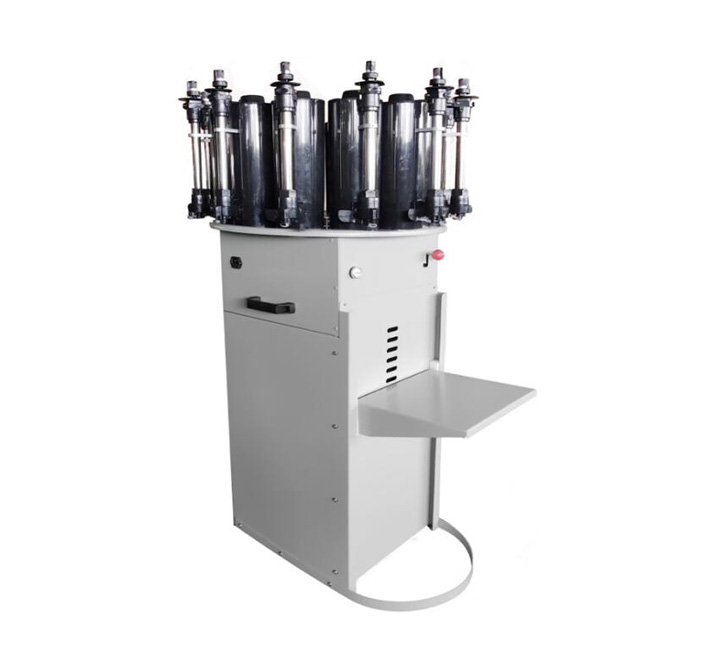

Floor standing model /Counter standing model |
|
Measurement system of scale |
US (1/48 & 1/384) [29,57 ml] / US (1/64 & 1/384) [29,57 ml] / Metric 1 ml |
|
Dispensing technology |
Piston pump |
|
Pump Capacity |
60 ml |
|
Canister inner diameter |
103mm----(plastic canisters) |
|
Canister capacity |
2.3L (plastic) , 2.3L (stainless steel) |
|
Canister material |
Stainless steel or POM plastic |
|
Valve seal ring type |
Silicone |
|
Minimum dispensed quantity |
1/384 fl.oz. (0,077ml) |
|
CAN TABLE SIZE |
|
|
Length |
350 mm |
|
Depth |
300 mm |
|
Maximum can height |
500 mm |
|
POWER SUPPLY / MACHINE ENVIRONMENT |
|
|
Power supply -- Frequency |
Single phase AC 110 / 220 V ±10% -- 50 / 60 HZ |
|
Rated power |
40 W |
|
DIMENSIONS |
|
|
Machine Size |
720 (L) X 720(W) X 1250(H) mm ---- 12 canisters |
|
Footprint |
0.17 ㎡ |
|
WEIGHT |
|
|
Machine Weight / Gross Weight |
60 KG / 65 KG |
|
Machine Weight / Gross Weight |
70 KG / 75 KG |
|
Machine Weight / Gross Weight |
69 KG / 74 KG |
|
Machine Weight / Gross Weight |
90 KG / 95 KG |
|
Loading Quantity |
|
|
If assemble the canisters onto the |
60 sets / 20"Container |
|
If not assemble the canisters onto the rotating table. |
100 - 120 sets / 20"Container |
|
PACKING |
Carton |
CG-1M
