CG-2A-05

CG-2A-05

Automatic Gyroscopic Mixer

Highlights

  • Satisfied Mixing Effect

    Rotation and revolution go simultaneously during mixing; Single-directional and bi-directional rotating for options, mixing quickly and thoroughly;
  • Friendly Operation

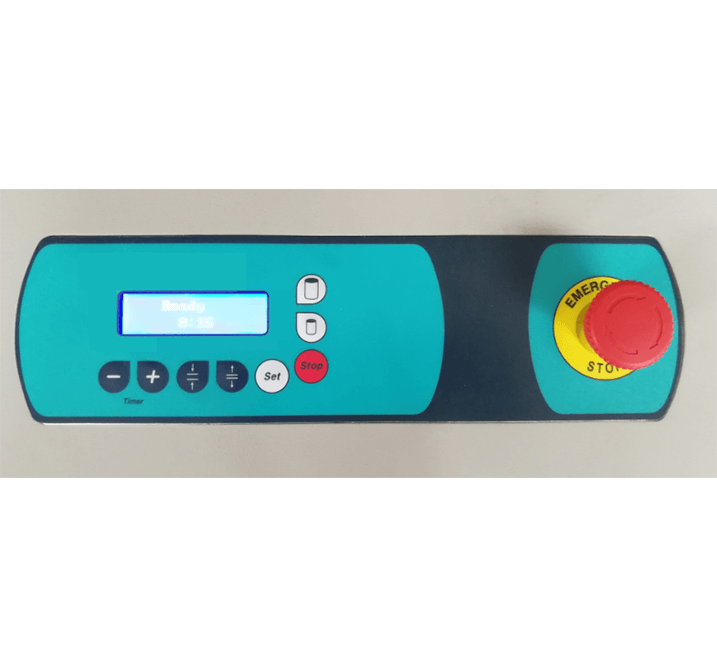

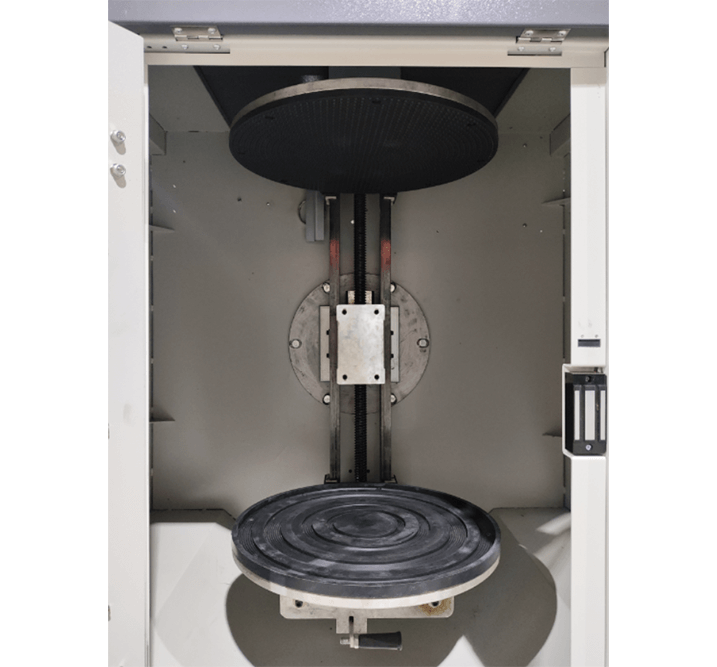

    Mixing speed can vary in function of weight and can shape; Automatic repositioning of the clamping plates, eliminates unnecessary operations; Chinese and English user interface for option; The LCD display is easier to read for the operator and clearly shows each phase of the mixing process; Forward-movable lower clamping plate, load and unload can conveniently; Wheels and feet at bottom, convenient to move the mixer;
  • Easy Maintain

    The failure testing program can judge the fault easily; The data of the inverter is automatically set, leaving you no trouble when replacing the inverter.
  • Safety

    Electric-magnetic lock, keep the door closed during mixing;

Product Parameter

BASE FEATURES

Type

Gyroscopic mixer

Clamping function

Automatic

Plate positioning after mixing cycle

Automatic

Mixing time

From 45 sec to 9 min 45 sec

Big can Mixing speed

(can height ≥220mm)

50 rpm - 100 rpm

Small can Mixing speed

(can height <220mm)

50 rpm - 150 rpm

Mixing direction

Single-direction and bi-direction for option

CAN SPECS

Type of cans

Round / Square

Suitable can height

90mm - 500mm

Maximum can diameter

360mm

Maximum can weight

35 KG

POWER SUPPLY / MACHINE ENVIRONMENT

Power supply

Single phase 110 /220 V ±10% -- 50/60 HZ

Rated Power

750 W

DIMENSIONS

Machine Size

880(L)*775 (W)*1210(H) MM

Footprint

0.68 m2

WEIGHT

Machine Weight

222 KG

Gross Weight

242 KG

LOADING QUANTITY

14 sets / 20" Container

PACKING

Carton
