What is the most common quality problem in paint production?

Batch-to-batch color inconsistency is the most widely reported quality failure in paint and coating manufacturing. It results from a combination of manual dosing errors, raw material variation, and the absence of instrument-based color verification at critical process stages.

How do automated tinting machines reduce batch color variation?

Automated laboratory tinting machines use spectrophotometric measurement to verify color against a defined target standard at every batch. Systems calibrated to ΔE ≤ 0.5 can maintain color consistency across hundreds of batches without manual recalibration.

What accuracy should a paint dispensing system achieve?

For most architectural and industrial coating applications, a dispensing accuracy of ±1g at a 30 kg batch weight is the appropriate technical standard. Systems operating at ±5g or wider tolerance introduce cumulative formulation errors that are statistically significant at production scale.

What certifications matter when buying coating production equipment for export markets?

For equipment used in flammable or explosive environments, ATEX (European Union) and IECEx (international) certifications are the primary standards to verify. ISO 9001 manufacturing certification and CE marking are baseline requirements for most European and regulated-market buyers.

How long does it take to see ROI from automating a manual tinting line?

Manufacturers replacing fully manual tinting operations with automated dispensing and color verification typically report quality-related cost reductions of 25–40% within the first year, with full capital payback reached between 18 and 36 months depending on scale.

> Mixing Machines > Mixer > CG-2S-02 Shaker

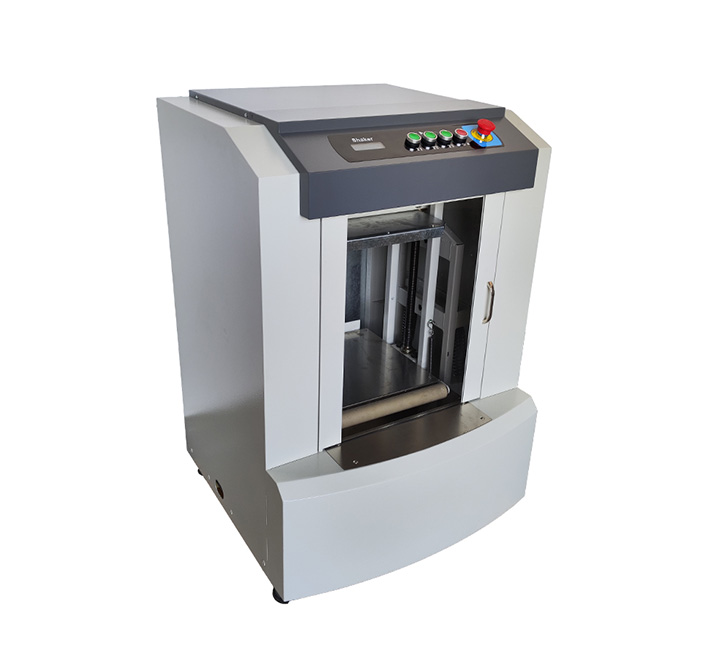

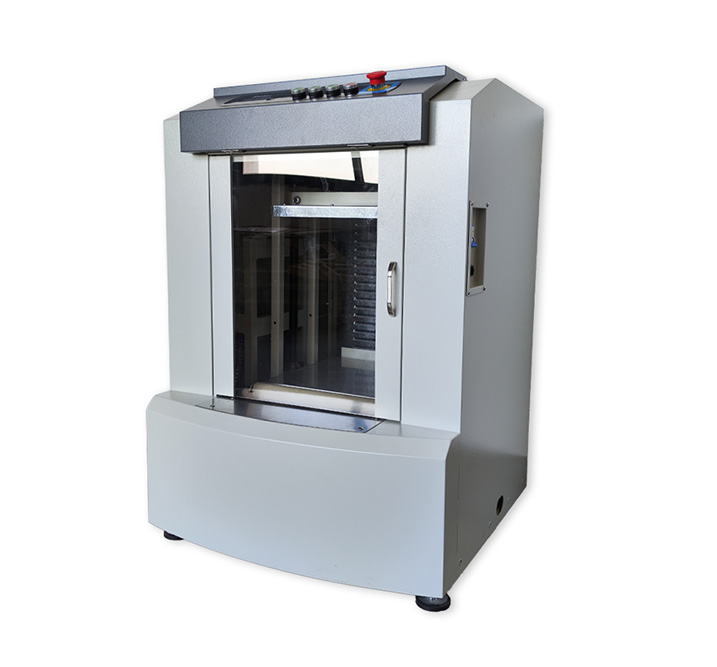

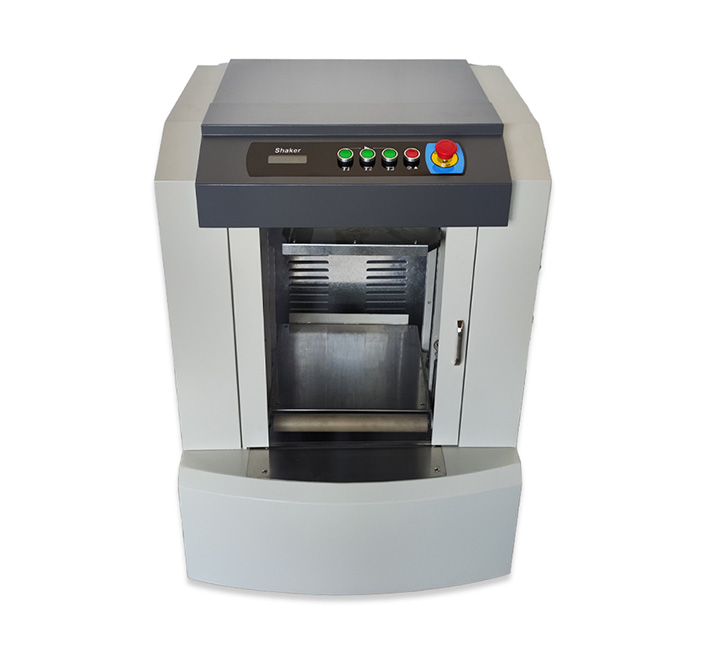

CG-2S-02 Shaker

Satisfied Mixing Effect
Automatic clamping; Low noise during shaking; Quickly and thoroughly mix by high speed vibration;
Friendly Operation
Optional shaking time between 1 - 9 mins; Adjustable clamping force for different sizes of can; Chinese and English user interface for option; The LCD display is easier to read for the operator and clearly shows each phase of the mixing process; Simple electrical structure, easy to maintain; Wheels and feet at bottom, convenient to move the mixer;
Safety
Electric-magnetic lock, keep the door closed during mixing; Shaking structure separate with the case, will not affect the case when high speed shaking;Centrifugal switch and overheating protection for shaking motor, effective to extend the motor life;

Product Parameter

BASE FEATURES
Type	Vibrating Shaker
Clamping function	Automatic
Plate positioning after mixing cycle	Automatic
Shaking time	1 to 9 minutes
Shaking speed	Up to 710 shakes per minute
CAN SPECS
Type of cans	Round / Square / Oval
Suitable can height	80-380mm
Maximum can diameter	350mm
Maximum can handling	Yes (The can must be the same height)
Maximum weight	35 KG
POWER SUPPLY / MACHINE ENVIRONMENT
Power supply	Single phase 110 /220 V ±10% -- 50/60 HZ
Rated Power	750 W
DIMENSIONS
Machine Size	720 (L) X 710(W) X 1045(H) MM
Footprint	0.57 m2
WEIGHT
Machine Weight	206 KG
Gross Weight	224 KG
LOADING QUANTITY	42 sets / 20" Container
PACKING	Carton
