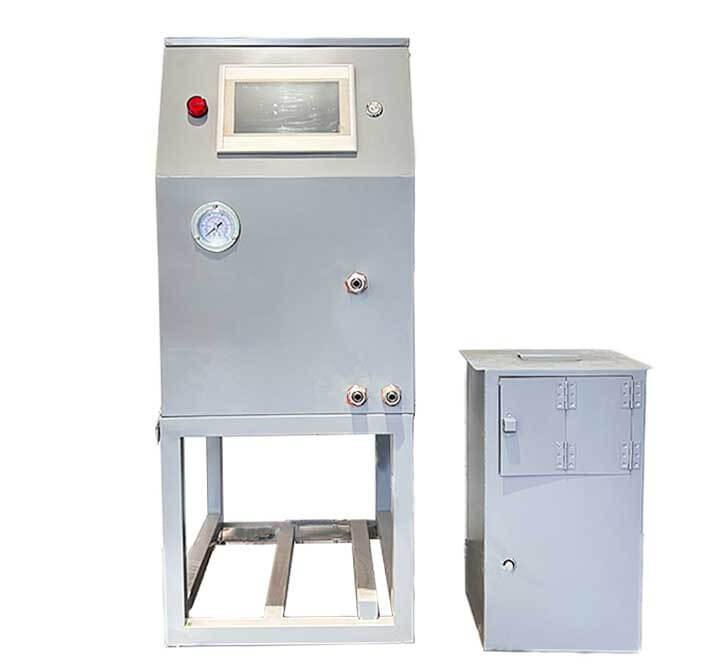

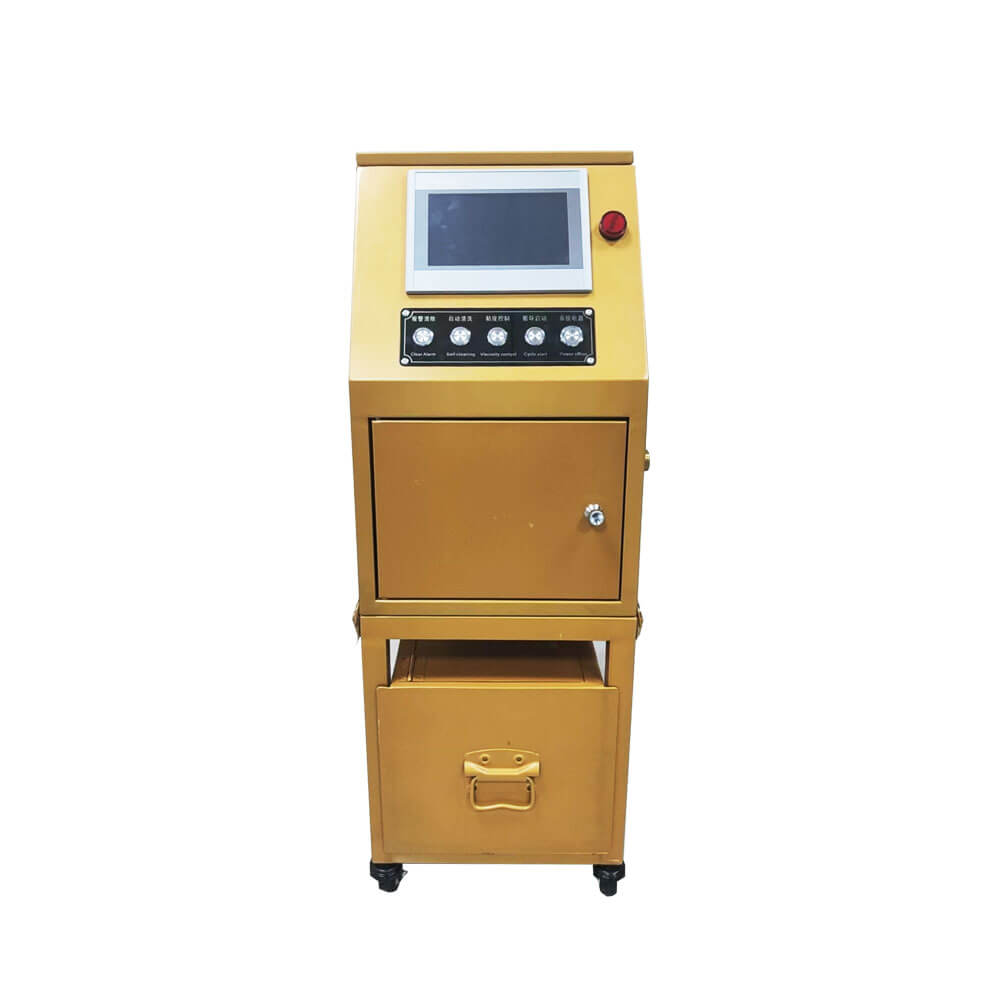

NP5.0-MIN-SE Viscosity Controller

Product Description

Precise and Automatic Ink Addition
Automatically and accurately add and mix ink online, adding one kilogram per kilogram consumed.

Intelligent Viscosity Identification
The device automatically identifies viscosity, eliminating the need for manual viscosity measurement.

Intelligent Viscosity Control
Users can freely increase or decrease viscosity based on production needs, with an accuracy of less than 0.2 seconds.

Precise Cost Calculation
Online statistics of actual ink consumption automatically calculate the total cost of ink and solvent for an order.

Alarm Monitoring
Automatic alarms for ink or solvent shortages and abnormal viscosity.

Teflon treatment on the body
Customizable body colors and

Viscosity Control Principle:

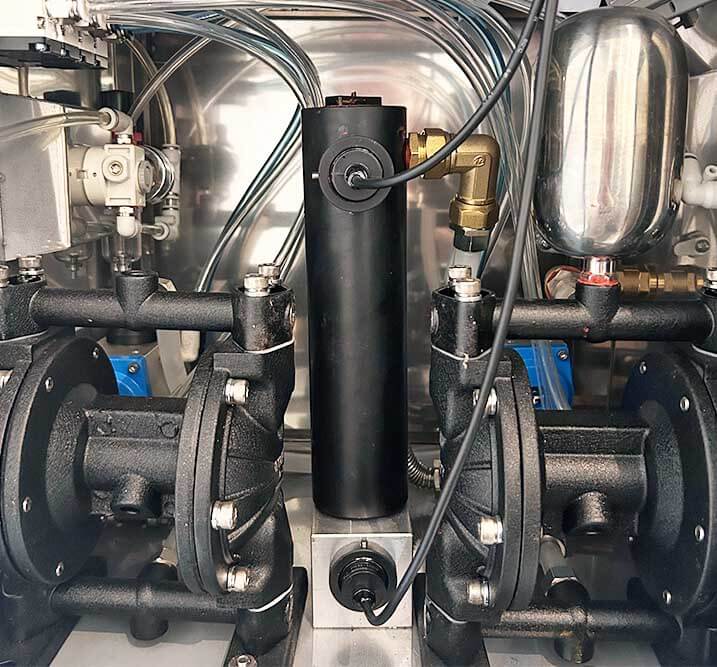

During printing/coating, ink/adhesive's gradually increases as the diluent in the ink/adhesive rapidly evaporates. NP5.0-MIN-SE has a built-in viscometer that measures ink/adhesive viscosity every 20s . When a viscosity increase is detected, it automatically replenishes diluent to control viscosity in real-time accurately.

Breakthrough innovations of the NanGragua NP5.0-MIN-SE Specialized Viscosity Controller's viscosity control compared to Traditional Viscosity Controllers:

(1) Features built-in viscometer, eliminating the need for frequent manual viscosity measurements.

(2) Eliminating risk of over-dilution due to excessive solvent addition, avoiding ink/ adhesive over-thinning.

While feeding liquid materials from the circulation tank to the fluid pan of the printing/coating/laminating equipment, viscosity is measured uninterrupted every 20 seconds. If the measured value exceeds the set value for 0.1 seconds, the main unit draws solvent and adds it to the circulation tank, enabling real-time viscosity control.
