No nozzle, moisturizing effect is better.

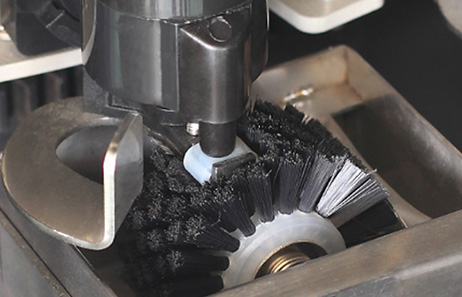

Automatic cleaning nozzle at the set time.

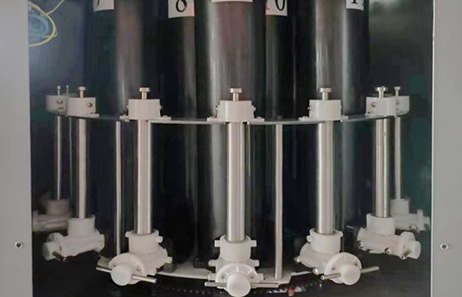

Piston pump, precise and no need to recalibrate;
The machine diagnostic can be done remotely, reducing the need for on-site service.
The formula data in Excel format, which customer offers, can be imported into our tinting system.
|
BASE DISPENSER FEATURES |
|
|
Colorant base compatibility |
Water-based |
|
Dispensing type |
Volumetric sequential dispensing |
|
Canister quantity |
16 canisters*2.3L |
|
Dispensing technology |
Piston pump |
|
Pump Capacity |
50 ml |
|
Canister inner diameter |
90mm |
|
Canister capacity |
2.3L |
|
Canister material |
PP |
|
Valve seal ring type |
Silicone |
|
Circuit flow rate |
0.25 L/min |
|
Minimum dispensed quantity |
1/384 fl.oz. (0,077ml) |
|
CAN TABLE SIZE |
|
|
Length |
350 mm |
|
Depth |
310 mm |
|
Maximum can height |
570 mm |
|
POWER SUPPLY / MACHINE ENVIRONMENT |
|
|
Power supply -- Frequency |
220 V ±10% -- 50 / 60 HZ |
|
Rated power |
150 W |
|
DIMENSIONS |
|
|
Machine Size |
665 (L) X 750(W) X 1210(H) MM |
|
Footprint |
0.5 ㎡ |
|
WEIGHT |
|
|
Machine Weight (with 16 canisters) |
114 KG |
|
Gross Weight (with 16 canisters) |
127 KG |
|
Loading Quantity |
21 sets / 21" Container |
|
PACKING |
Carton |
