What is the most common quality problem in paint production?

Batch-to-batch color inconsistency is the most widely reported quality failure in paint and coating manufacturing. It results from a combination of manual dosing errors, raw material variation, and the absence of instrument-based color verification at critical process stages.

How do automated tinting machines reduce batch color variation?

Automated laboratory tinting machines use spectrophotometric measurement to verify color against a defined target standard at every batch. Systems calibrated to ΔE ≤ 0.5 can maintain color consistency across hundreds of batches without manual recalibration.

What accuracy should a paint dispensing system achieve?

For most architectural and industrial coating applications, a dispensing accuracy of ±1g at a 30 kg batch weight is the appropriate technical standard. Systems operating at ±5g or wider tolerance introduce cumulative formulation errors that are statistically significant at production scale.

What certifications matter when buying coating production equipment for export markets?

For equipment used in flammable or explosive environments, ATEX (European Union) and IECEx (international) certifications are the primary standards to verify. ISO 9001 manufacturing certification and CE marking are baseline requirements for most European and regulated-market buyers.

How long does it take to see ROI from automating a manual tinting line?

Manufacturers replacing fully manual tinting operations with automated dispensing and color verification typically report quality-related cost reductions of 25–40% within the first year, with full capital payback reached between 18 and 36 months depending on scale.

> Dispensers > Dispensers(Weight) > DM-48

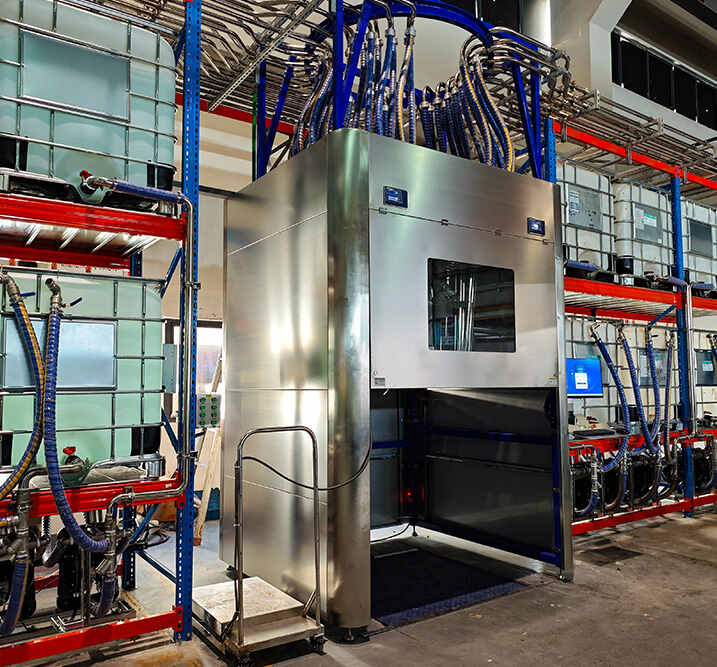

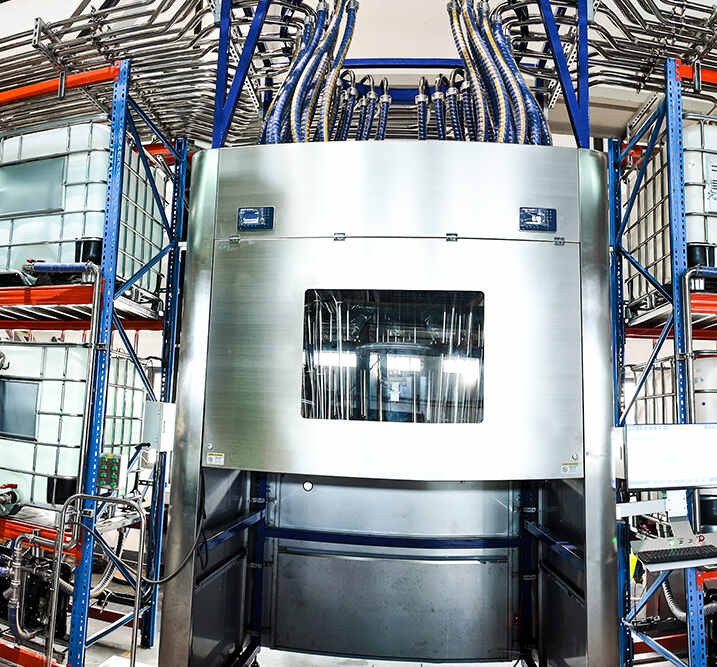

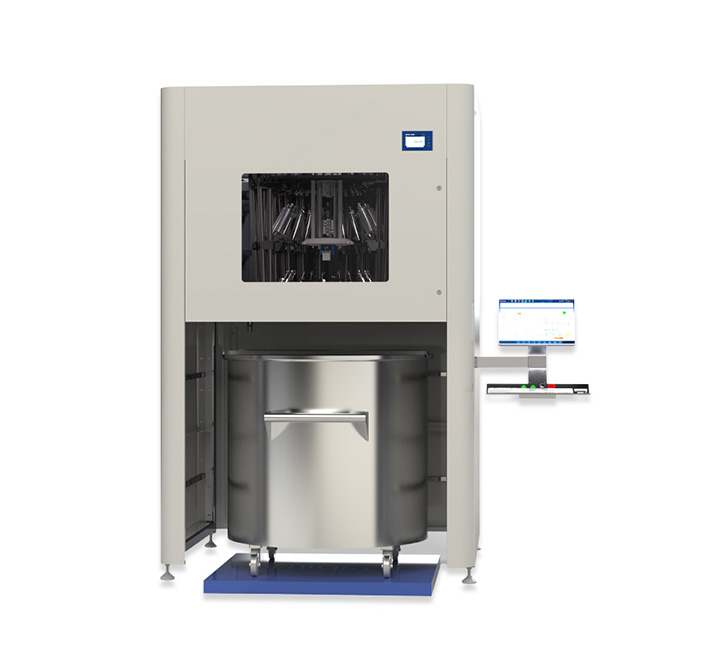

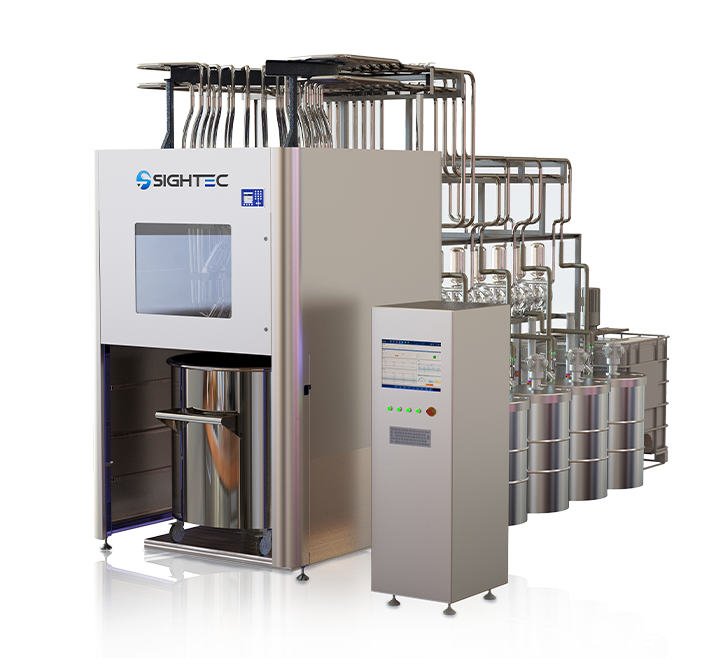

DM-48

Swing-Arm Dispenser

Highlights

High Performance
High efficiency and precision with accuracy of up to 0.1g;
Highly Automatic
Advanced automation to improve production efficiency and lower VOC emissions;
Intelligent Software
Producing and order management, linked with factory ERP;

Product Parameter

Working Environment	EX/Non-EX
Application	Water/Solvent Based Products
Number of Valves	Up to 48
Type of Canister	Pails and/or Drums and/or IBC
Typical Batch size	10L-2000L
Performance	3-5 min per 20L, 20-25min 1000L
System Precision	± 1g per 30kg Range, ± 50g per 1000kg Range
Pump Size	0.5”/1”/1.5”

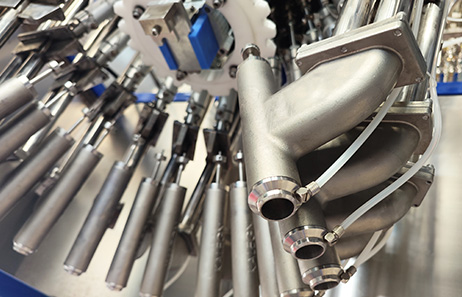

Valve Type	Three-stage Multi Flow valve
Valve cleaner	Automatic
Scale	6kg - 2000kg
After sales	Equipped with remote technical support function
