What is the most common quality problem in paint production?

Batch-to-batch color inconsistency is the most widely reported quality failure in paint and coating manufacturing. It results from a combination of manual dosing errors, raw material variation, and the absence of instrument-based color verification at critical process stages.

How do automated tinting machines reduce batch color variation?

Automated laboratory tinting machines use spectrophotometric measurement to verify color against a defined target standard at every batch. Systems calibrated to ΔE ≤ 0.5 can maintain color consistency across hundreds of batches without manual recalibration.

What accuracy should a paint dispensing system achieve?

For most architectural and industrial coating applications, a dispensing accuracy of ±1g at a 30 kg batch weight is the appropriate technical standard. Systems operating at ±5g or wider tolerance introduce cumulative formulation errors that are statistically significant at production scale.

What certifications matter when buying coating production equipment for export markets?

For equipment used in flammable or explosive environments, ATEX (European Union) and IECEx (international) certifications are the primary standards to verify. ISO 9001 manufacturing certification and CE marking are baseline requirements for most European and regulated-market buyers.

How long does it take to see ROI from automating a manual tinting line?

Manufacturers replacing fully manual tinting operations with automated dispensing and color verification typically report quality-related cost reductions of 25–40% within the first year, with full capital payback reached between 18 and 36 months depending on scale.

> Mixing Machines > Mixer > CG-2A-03 Gyro Mixer

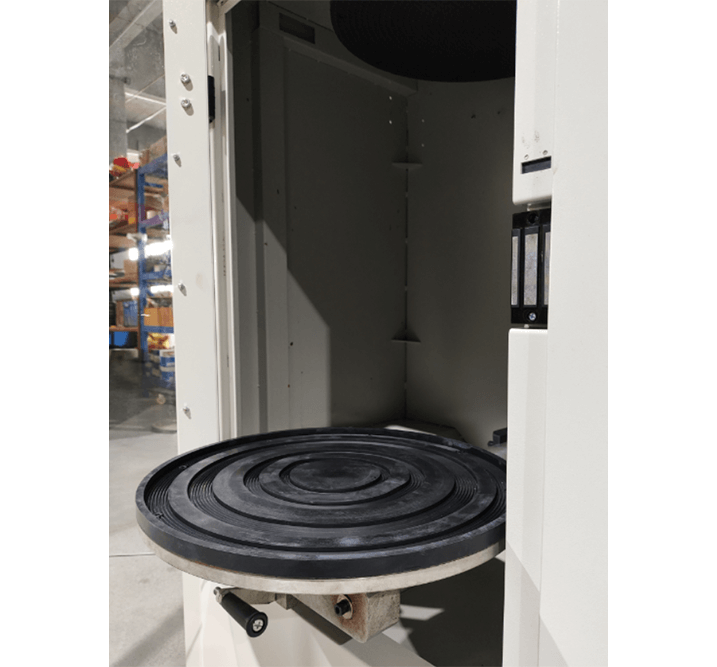

CG-2A-03 Gyro Mixer

Satisfied Mixing Effect
Rotation and revolution go simultaneously during mixing; Single-directional and bi-directional rotating for options, mixing quickly and thoroughly;
Friendly Operation
Mixing speed can vary in function of weight and can shape; Automatic repositioning of the clamping plates, eliminates unnecessary operations; Chinese and English user interface for option; The LCD display is easier to read for the operator and clearly shows each phase of the mixing process; Forward-movable lower clamping plate, load and unload can conveniently; Wheels and feet at bottom, convenient to move the mixer;
Easy Maintain
The failure testing program can judge the fault easily; The data of inverter is automatically set, leaving you no trouble when replacing inverter.
Safety
Electric-magnetic lock, keep the door closed during mixing;

Product Parameter

BASE FEATURES
Type	Gyroscopic mixer
Clamping function	Automatic
Plate positioning after mixing cycle	Automatic
Mixing time	From 15 sec to 9 min 45 sec
Big can Mixing speed (can height ≥220mm)	50 rpm - 100 rpm
Small can Mixing speed (can height <220mm)	50 rpm - 150 rpm
Mixing direction	Single-direction and bi-direction for option
CAN SPECS
Type of cans	Round / Square
Suitable can height	90mm - 410mm
Maximum can diameter	360mm
Maximum can weight	35 KG
POWER SUPPLY / MACHINE ENVIRONMENT
Power supply	Single phase 110 /220 V ±10% -- 50/60 HZ
Rated Power	750 W
DIMENSIONS
Machine Size	780(L)770 (W)1020(H) MM
Footprint	0.6m2
WEIGHT
Machine Weight	184 KG
Gross Weight	204 KG
LOADING QUANTITY	42 sets / 20" Container
PACKING	Carton

Download

CG-2A-03 Gyro Mixer

Product Parameter

Download

BROCHURE

DATA SHEET

USER’S MANUAL
