CG-2S-03

CG-2S-03

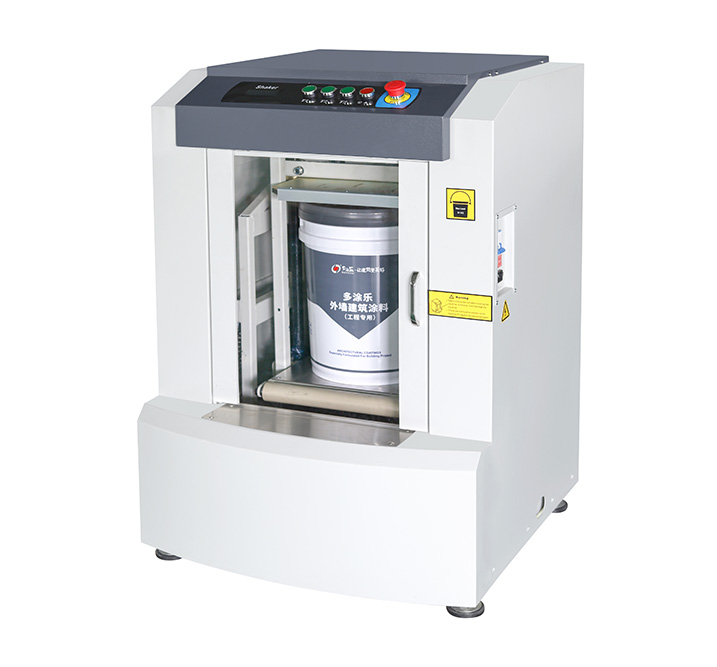

Automatic Shaker Mixers

Highlights

  • Satisfied Mixing Effect

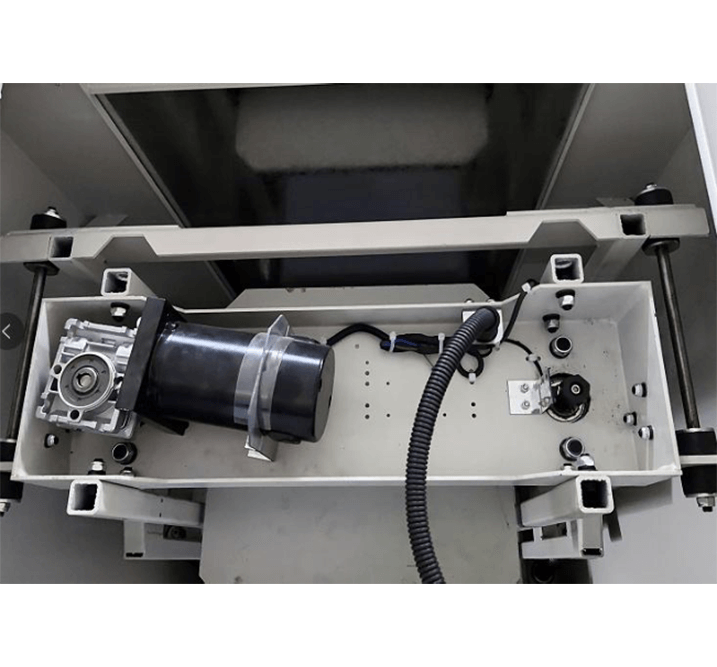

    Automatic clamping; Low noise during shaking; Quickly and thoroughly mix by high-speed vibration;
  • Friendly Operation

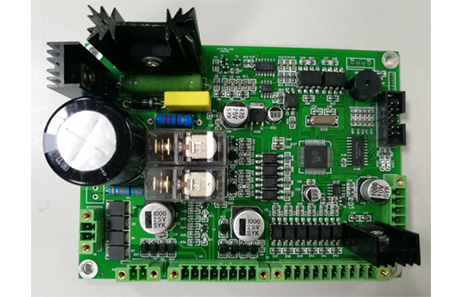

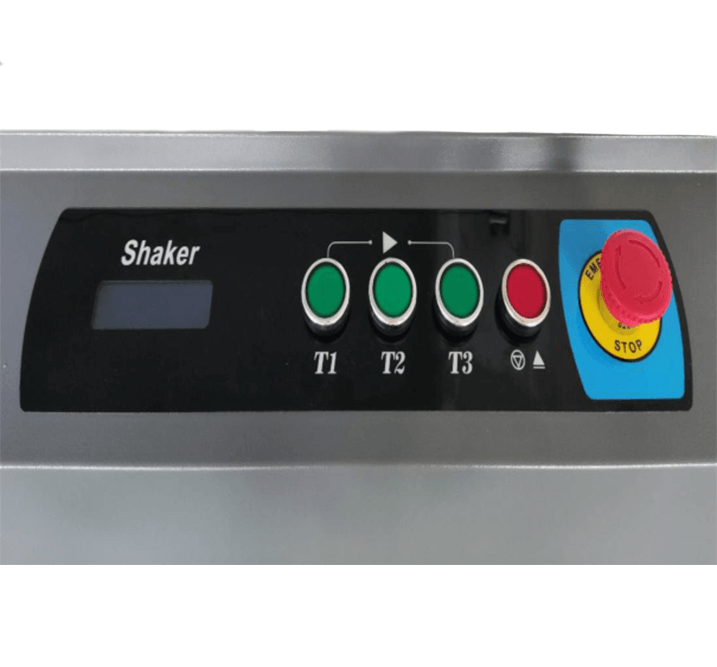

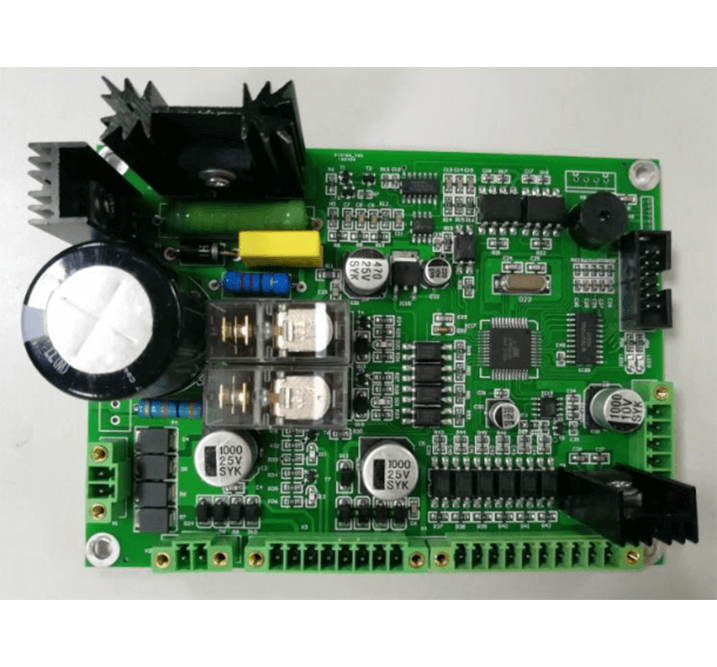

    Optional shaking time between 1 - 9 mins; Adjustable clamping force for different sizes of can; Chinese and English user interface for option; The LCD display is easier to read for the operator and clearly shows each phase of the mixing process; Simple electrical structure, easy to maintain; Wheels and feet at bottom, convenient to move the mixer;
  • Safety

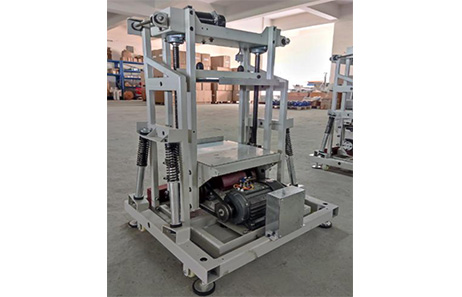

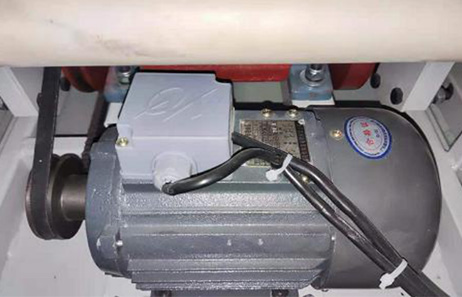

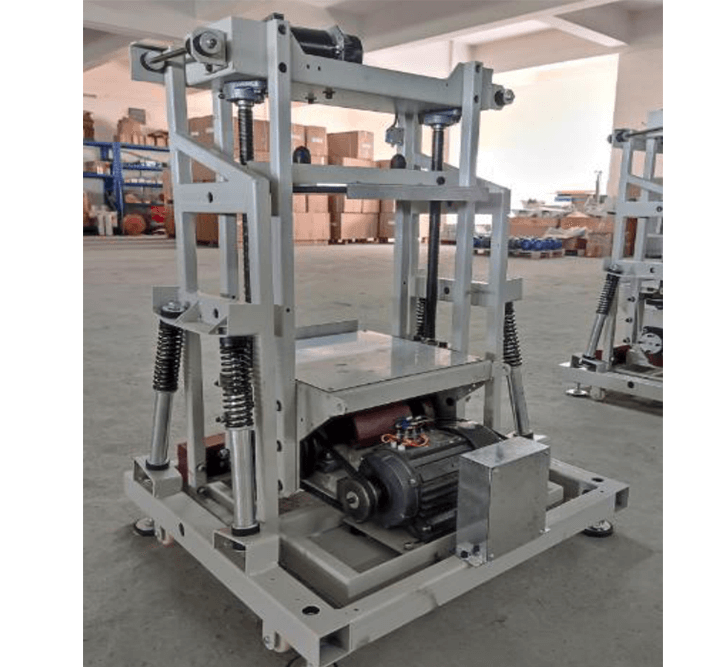

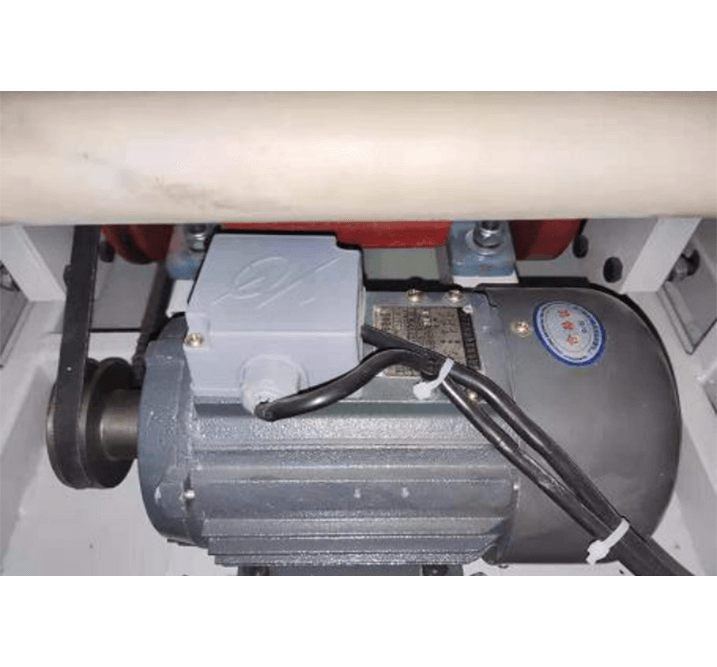

    Safety inspection switch for door , the shaker will stop running when the door is open; Shaking structure separate from the case, will not affect the case when high-speed shaking;Centrifugal switch and overheating protection for shaking motor, effective to extend the motor life;

Product Parameter

BASE FEATURES

Type

Vibrating Shaker

Clamping function

Automatic

Plate positioning after mixing cycle

Automatic

Shaking time

1 to 120 minutes

Shaking speed

Up to 710 shakes per minute

CAN SPECS

Type of cans

Round / Square / Oval

Suitable can height

50-400mm

Maximum can diameter

350mm

Maximum can handling

Yes (The can must be the same height)

Maximum weight

35 KG

POWER SUPPLY / MACHINE ENVIRONMENT

Power supply

Single phase 110 /220 V ±10% -- 50/60 HZ

Rated Power

750 W

DIMENSIONS

Machine Size

720 (L) X 710(W) X 1045(H) MM

Footprint

0.51m2

WEIGHT

Machine Weight

206 KG

Gross Weight

224 KG

LOADING QUANTITY

42 sets / 20" Container

PACKING

Carton
