> Filling Machines > Stone Paint Filling > F50S-Single Nozzle

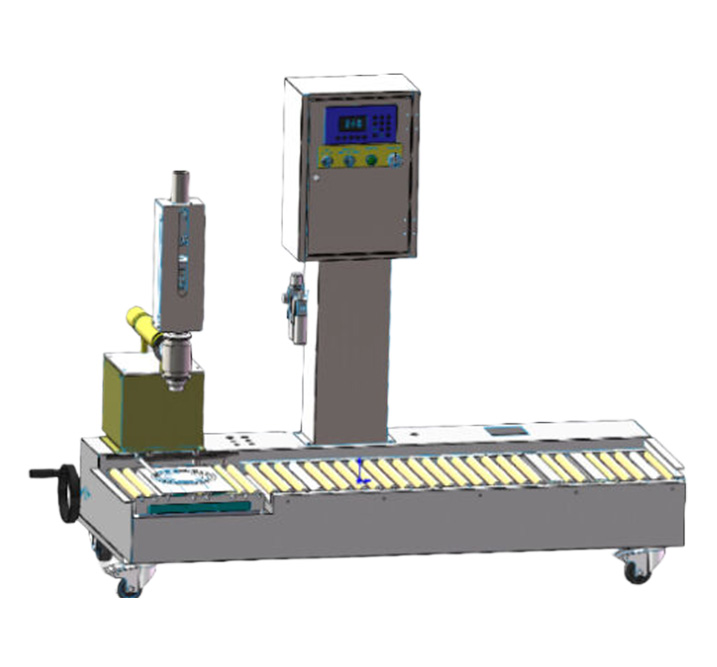

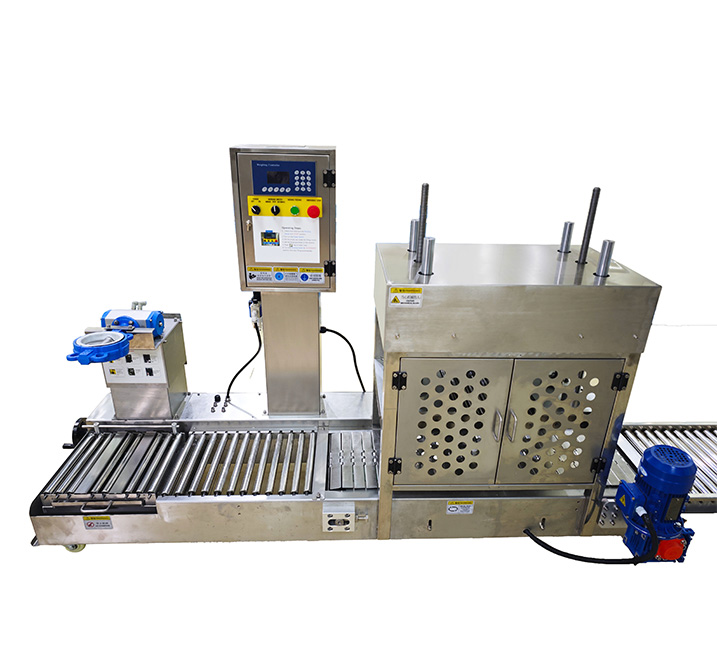

F50S-Single Nozzle

Single Nozzle Semi-automatic Filling Machine

Highlights

Intelligent Filling Equipment
High equipment stability and low failure rate; Integrated self-learning algorithms to continuously optimize filling accuracy and efficiency; Replace the filling valve port according to different barrel shapes, compatible with different barrel shapes;
Easy To Operate And Use
Different packaging specifications can be switched; The filling speed can be controlled manually;
Environmental Protection And Safety
No material tank design, reducing VOC volatilization;

Product Parameter

Material	Stone Paint
Electricity Consumption Environment	240V 50Hz/415V 50Hz
Plug Style
Number of filling heads	Single Head/Double Heads
Bucket Size	30kg, 5kg
Efficiency	30kg 5barrel/min 5kg 8 barrels/min
Accuracy Level	30kg ±30g 5kg ±15g
Movable	yes
Production Tank Type	Platform storage tank
Interface	3-inch flange
Automatic Capping	no
Filter Trolley	no
Power	1kw
Exp	Ex IIB T4

FAQ

Are your machines explosion-proof?
We supply positive pressure explosion-proof control cabinet. We can provide CNEX and ATEX . However, our explosion-proof certification applies only to individual components, not the entire machine, as our products are custom-made to non-standard specifications.
Is the machine dangerous to operate?
The machine is equipped with a foolproof mechanism and an emergency stop button. Should the machine detect a hazard, it will automatically shut down. Alternatively, the operator can manually activate the emergency stop button.
Can you offer customisation?
We can customise products according to customer requirements.
