What is the most common quality problem in paint production?

Batch-to-batch color inconsistency is the most widely reported quality failure in paint and coating manufacturing. It results from a combination of manual dosing errors, raw material variation, and the absence of instrument-based color verification at critical process stages.

How do automated tinting machines reduce batch color variation?

Automated laboratory tinting machines use spectrophotometric measurement to verify color against a defined target standard at every batch. Systems calibrated to ΔE ≤ 0.5 can maintain color consistency across hundreds of batches without manual recalibration.

What accuracy should a paint dispensing system achieve?

For most architectural and industrial coating applications, a dispensing accuracy of ±1g at a 30 kg batch weight is the appropriate technical standard. Systems operating at ±5g or wider tolerance introduce cumulative formulation errors that are statistically significant at production scale.

What certifications matter when buying coating production equipment for export markets?

For equipment used in flammable or explosive environments, ATEX (European Union) and IECEx (international) certifications are the primary standards to verify. ISO 9001 manufacturing certification and CE marking are baseline requirements for most European and regulated-market buyers.

How long does it take to see ROI from automating a manual tinting line?

Manufacturers replacing fully manual tinting operations with automated dispensing and color verification typically report quality-related cost reductions of 25–40% within the first year, with full capital payback reached between 18 and 36 months depending on scale.

> Filling Machines > Liquid Filling > F200-Single Nozzle

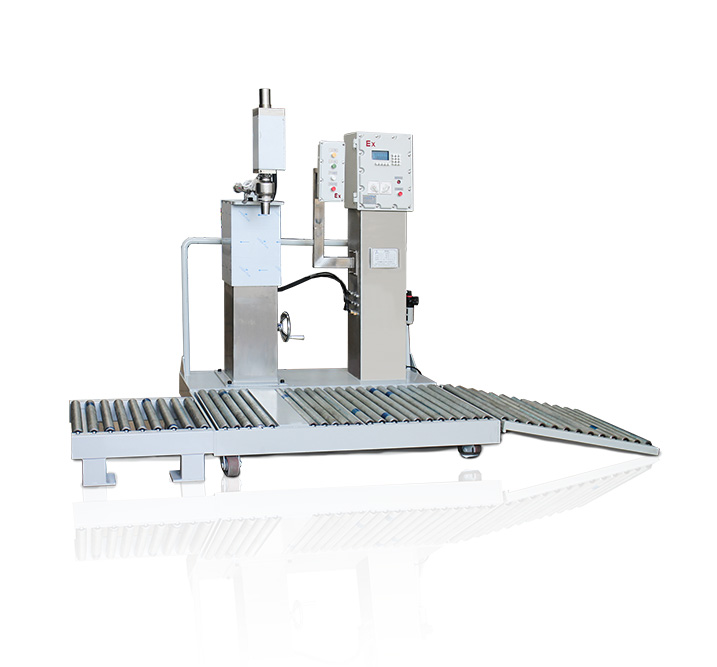

F200-Single Nozzle

Single nozzle 200L Filling Machine

Highlights

Suitable for low and medium viscosity materials.
One worker operation, cost saving.
Filling height is adjustable.
Suitable for a fling 50kg drum/200kg drum/lBC tank.

Product Parameter

Slide Width	600-1200MM
Working Environment	EX/Non-EX
VOC Collection	Optional
Fits Barrel	50KG/200KG/IBC
Number of filling heads	Single Head/Double Heads
Rated power	1000W
Power supply	380/410V--50/60 HZ
Machine dimension	1500(L)X1300(W)X1700(H)mm

Download
