Intelligent Filling Equipment
High equipment stability and low failure rate; Integrated self-learning algorithms to continuously optimize filling accuracy and efficiency;Easy To Operate And Use
Different packaging specifications can be switched, suitable for personalized orders or multi-formula production; The filling speed can be controlled manually to avoid bubbles or spillage caused by rapid filling;Filter Trolley
ARO pump: Stainless steel material, long service life; Integrated design for easy mobility;|
Material |
Water base paint |
|
Working environment |
EX/Non-EX |
|
Plug Style |
|
|
Number of filling heads |
Single Head/Double Heads |
|
Bucket Size |
20L, 4L, 1L |
|
Efficiency |
20L5- 6 barrels/min 4L 10-12 barrels/min 1L 14-16 barrels/min |
|
Accuracy Level |
20L ± 30g 4L ± 10g 1L ± 5g |
|
Production Tank Type |
Platform storage tanks and cylinder scraping |
|
Interface |
3-inch internal thread and 3-inch flange |
|
Automatically Placing the Lids |
yes |
|
Automatic Capping |
no |
|
Filter Trolley |
yes |
|
Power |
1kw |
|
Exp |
N/A |
|
Electricity Consumption Environment |
240V 50Hz /415V 50Hz |
|
Viscosity |
130KU |
Are your machines explosion-proof?
We supply positive pressure explosion-proof control cabinet. We can provide CNEX and ATEX . However, our explosion-proof certification applies only to individual components, not the entire machine, as our products are custom-made to non-standard specifications.Is the machine dangerous to operate?
The machine is equipped with a foolproof mechanism and an emergency stop button. Should the machine detect a hazard, it will automatically shut down. Alternatively, the operator can manually activate the emergency stop button.Can you offer customisation?
We can customise products according to customer requirements.

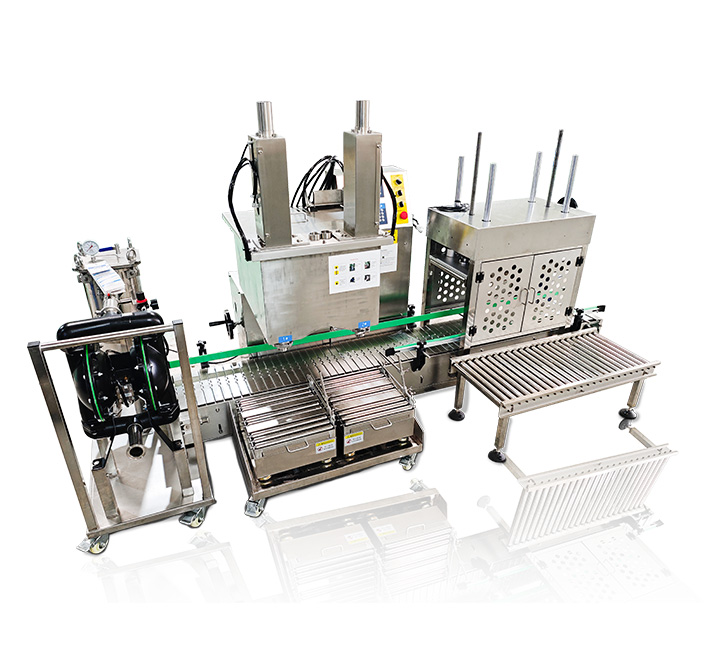

F50D-Double Nozzles
