Whether you run a beverage bottling plant, a personal care product line, or a chemical distribution facility, the efficiency of your filling process directly impacts your bottom line. Among the most impactful upgrades manufacturers make is switching from a single nozzle system to a double nozzle filling machine — yet many production managers are unsure exactly when this switch is justified, or what the true operational differences are.
This guide answers both questions in detail. By the end, you will have a clear picture of how dual nozzle fillers work, where they outperform single nozzle alternatives, and how to determine whether your current production volume and product type make the upgrade worthwhile.
1. What Is a Double Nozzle Filling Machine?
A double nozzle filling machine — also called a dual nozzle filler or twin nozzle filling machine — is an automated liquid or paste dispensing system that uses two filling heads operating simultaneously to fill two containers per cycle. Unlike a single nozzle machine, which completes one fill at a time, a double nozzle machine effectively doubles output without requiring a proportionally larger footprint or additional operators.
These machines are widely used across food and beverage, pharmaceutical, cosmetics, chemical, and household product sectors. They are available in volumetric, weight-based (gravimetric), piston, and peristaltic pump configurations, each suited to different liquid viscosities, fill volumes, and hygiene requirements.
At Sightec, our liquid filling machine range includes both single and double nozzle configurations designed to accommodate fill volumes from a few millilitres up to several litres, across thin liquids and high-viscosity pastes alike.
2. How Does It Work?
The fundamental operating principle is straightforward. A conveyor or rotary indexing system advances two containers simultaneously into the filling station. Both nozzles descend (or the containers rise, depending on the design) to initiate the fill. Product is drawn from a shared supply tank — or, in some models, independent tanks — and dispensed through each nozzle in a precisely metered quantity. Once the target volume or weight is reached, the nozzles retract and the containers advance to the next station (capping, labelling, sealing, and so on).
Key sub-systems involved:
- Filling heads: The nozzles themselves, which may be dive-type (descend into the container to reduce foaming), bottom-up (start at the container base and retract as liquid rises), or flush (remain flush with the container mouth).
- Metering system: Controls the volume dispensed — either by time-based flow, piston displacement, or continuous weight feedback (load cell).
- PLC control panel: A programmable logic controller coordinates nozzle timing, conveyor indexing, and alarm logic. Modern machines feature touchscreen HMIs for recipe storage and parameter adjustments.
- Product supply system: Includes a hopper or storage tank, pump, and flow control valve, sized to maintain consistent pressure at both nozzles.
- Drip prevention: Anti-drip nozzle valves or vacuum suck-back mechanisms prevent product waste and container contamination between fills.
For products requiring strict hygiene, such as dairy or pharmaceutical liquids, machines can be equipped with CIP (Clean-In-Place) systems.
3. Single Nozzle vs. Double Nozzle: Key Differences
Understanding the operational differences is essential before making a capital investment decision. The table below summarises the most relevant comparison points:
| Parameter | Single Nozzle Filler | Double Nozzle Filler |
|---|---|---|
| Throughput | Lower — one container per cycle | Up to 2× higher — two containers per cycle |
| Footprint | Compact | Slightly larger, but space-efficient vs. two single machines |
| Capital cost | Lower upfront investment | Higher upfront; lower cost per unit produced |
| Labour requirement | Equivalent | Equivalent (same operator count for double the output) |
| Fill accuracy | High | High — independent metering per nozzle |
| Flexibility | Easier to switch between small container sizes | Requires matched pair of containers; format changeover takes slightly longer |
| Maintenance complexity | Lower | Moderate — two nozzle assemblies to maintain |
| Ideal production volume | Low to medium volume runs | Medium to high volume, high-speed lines |
4. Core Advantages of Dual-Nozzle Filling
4.1 Doubled Throughput Without Doubling Floor Space
The most immediate benefit is output. Running two containers per cycle on a single conveyor line means manufacturers can hit higher production targets without expanding their facility. For operations already constrained by floor space, this is often the decisive factor.
4.2 Lower Cost per Unit Produced
Because labour, utilities, and machine overhead are shared across two containers per cycle, the cost per filled unit drops significantly compared to running two separate single nozzle machines. Over a shift of thousands of units, the savings compound quickly.
4.3 Consistent Fill Accuracy Across Both Heads
Modern double nozzle machines use independent metering for each head. This means that even if slight pressure variations occur in the supply line, each nozzle compensates independently, maintaining fill weight or volume accuracy within tight tolerances — typically ±0.5% or better on gravimetric systems.
4.4 Reduced Operator Fatigue and Human Error
Automating two fills per cycle reduces the number of manual interventions per shift, cutting the opportunity for human error. PLC-controlled recipe management also ensures repeatability across product changeovers. See how our automated packaging line solutions integrate filling, capping, and labelling into a single controlled workflow.
4.5 Scalable Integration into Complete Packaging Lines
Double nozzle fillers are designed to integrate with downstream equipment — cappers, induction sealers, labellers, and case packers — at matched speeds. This makes them a natural anchor point for a fully automated line rather than an isolated standalone machine.

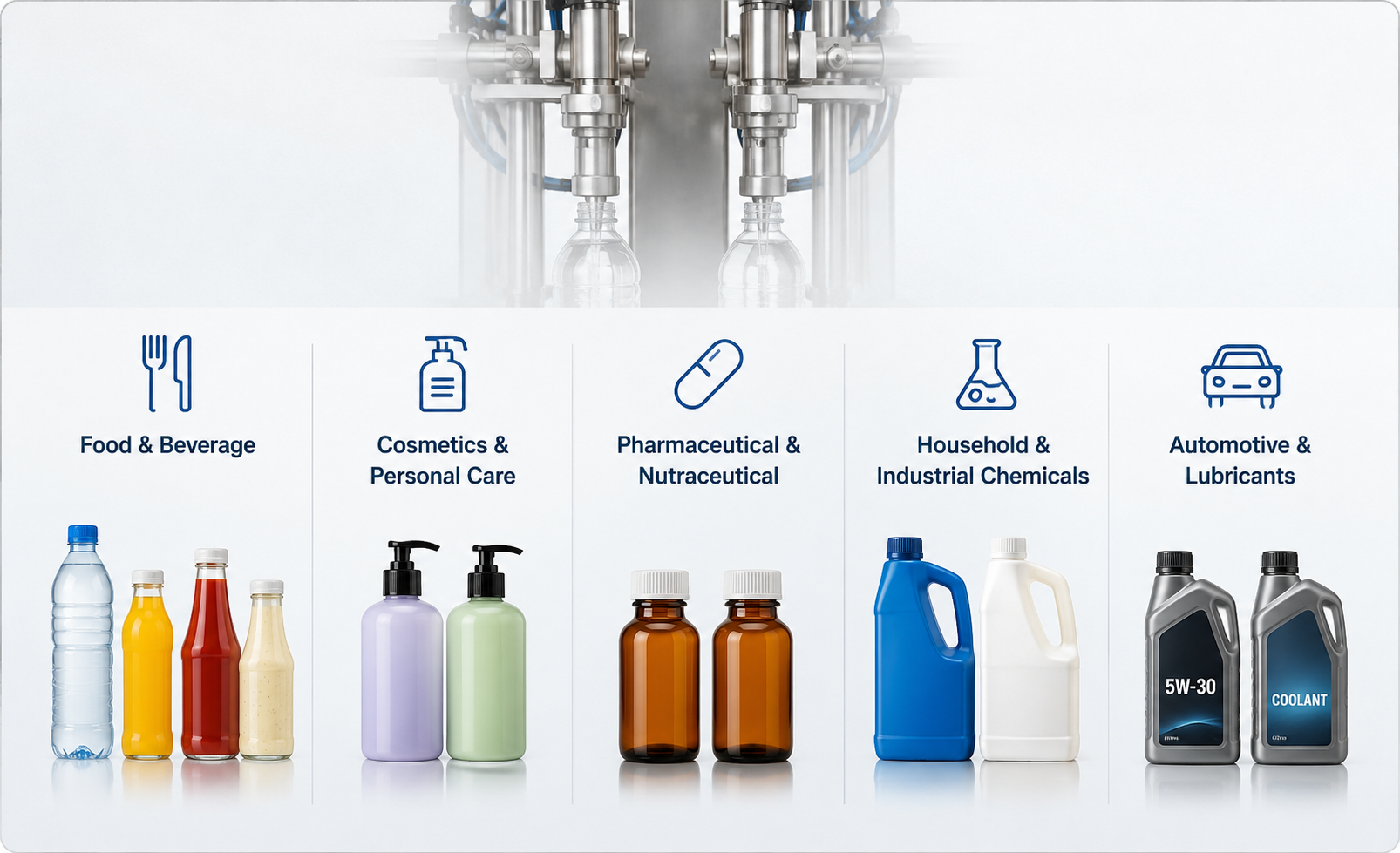

5. Industries and Applications That Benefit Most
Double nozzle filling machines are versatile, but they deliver the greatest return in specific industry and product contexts:
Food and Beverage
Bottled water, juices, sauces, condiments, dairy products, and cooking oils all benefit from high-speed dual filling. Hygienic stainless steel construction and CIP compatibility make double nozzle fillers compliant with food safety standards such as FDA 21 CFR and EU food contact regulations.
Cosmetics and Personal Care
Shampoos, conditioners, lotions, liquid soaps, and serums — often filled into matching pairs of bottles for retail multipacks — are ideally suited to dual-nozzle systems.
Pharmaceutical and Nutraceutical
Oral liquids, antiseptics, and supplement solutions require precise dosing and contamination control. Double nozzle machines for this sector typically feature 316L stainless steel product contact surfaces, servo-driven metering, and full audit trail logging.
Household and Industrial Chemicals
Detergents, cleaning agents, lubricants, and agricultural chemicals are often filled in large quantities into identical containers — a perfect match for dual nozzle efficiency. Chemical-resistant seals and materials are standard on machines designed for this sector.
Automotive and Lubricants
Engine oils, coolants, and brake fluids are typically filled into uniform containers at high volumes, making double nozzle fillers a natural fit. Gravimetric systems are common here due to the density variation of these products.
6. When Do You Actually Need a Double Nozzle Filler?
This is the practical question most procurement and operations teams struggle with. The answer depends on four factors: your current and projected production volume, your product type, your facility constraints, and your cost-per-unit targets.
You likely need a double nozzle filler if:
- Your single nozzle machine is a throughput bottleneck — downstream equipment (capper, labeller) sits idle waiting for filled containers.
- You produce more than 2,000–3,000 units per shift of the same SKU, and volume is growing.
- You fill the same product into matched pairs of identically sized containers (common in promotional multipacks or symmetrical retail formats).
- You are building a new line from scratch and plan to reach medium-to-high production volumes within 12–24 months.
- Labour costs in your region are high, and maximising output per operator is a strategic priority.
- You need to improve fill accuracy and reduce product giveaway — dual metering often achieves tighter tolerances than older single-head systems.
A single nozzle filler is probably sufficient if:
- You run frequent short-batch changeovers across many SKUs with different container sizes.
- Your total daily production volume is relatively low (under 1,500–2,000 units per shift).
- Your facility has very limited floor space and cannot accommodate even the modest additional footprint.
- Capital budget is highly constrained and the production volume does not justify the return on the additional investment.
Not sure which configuration fits your operation? Our team can assess your production parameters and recommend the right solution. Visit our solutions page or contact us directly for a free consultation.
7. What to Look for When Choosing a Double Nozzle Filling Machine
Not all dual nozzle fillers are equal. When evaluating suppliers and models, prioritise the following criteria:
7.1 Fill Accuracy and Metering Method
Gravimetric (weight-based) systems offer the highest accuracy regardless of product density variation. Volumetric and piston systems are excellent for consistent-density products and often lower in cost. Confirm the ±% accuracy specification under real operating conditions, not just ideal lab conditions.
7.2 Speed and Cycle Rate
Specify the required fills per minute (FPM) or bottles per hour (BPH) for your target SKU and container size. Ensure the machine’s rated speed aligns with your downstream line speed — mismatches create bottlenecks or require buffer conveyors.
7.3 Product Contact Materials
Food, pharmaceutical, and chemical products each have different material compatibility requirements. 304 stainless steel is standard for food; 316L is required for pharmaceutical and corrosive chemicals. Confirm seal materials (PTFE, silicone, EPDM) are compatible with your specific product.
7.4 Changeover Time and Flexibility
If you fill multiple container sizes, evaluate how quickly and easily the nozzle spacing and height can be adjusted. Tool-free changeover mechanisms significantly reduce downtime on mixed-SKU lines.
7.5 Control System and Integration
Prefer machines with modern PLC platforms (Siemens, Allen-Bradley, or equivalent) that offer recipe storage, production reporting, and standard industrial communication protocols (Ethernet/IP, Profibus, MODBUS) for integration with your MES or ERP system.
7.6 After-Sales Support and Spare Parts Availability
A machine that cannot be serviced quickly is a liability. Confirm your supplier’s spare parts lead times, regional service capabilities, and remote diagnostics support. At Sightec, we maintain a comprehensive after-sales support programme including remote troubleshooting, on-site service, and fast-ship spare parts.
8. Frequently Asked Questions
9. Conclusion
A double nozzle filling machine is one of the most cost-effective throughput upgrades available to medium and high-volume manufacturers. By filling two containers simultaneously per cycle, it effectively doubles output while sharing infrastructure — reducing the cost per unit produced, keeping the operational footprint manageable, and integrating cleanly into fully automated packaging lines.
The right time to invest is when your single nozzle system is becoming a bottleneck, when your production targets are outpacing your current line speed, or when you are designing a new line and expect to reach significant volumes within the near term. Conversely, if you run many short-batch, mixed-SKU operations with diverse container sizes, a single nozzle or semi-automatic system may remain the more practical choice.
Choosing the right machine depends on your specific product, volume, hygiene requirements, and integration needs. Sightec offers a comprehensive range of liquid filling machines and complete packaging solutions, with engineering support to help you select, configure, and commission the right system for your operation.
